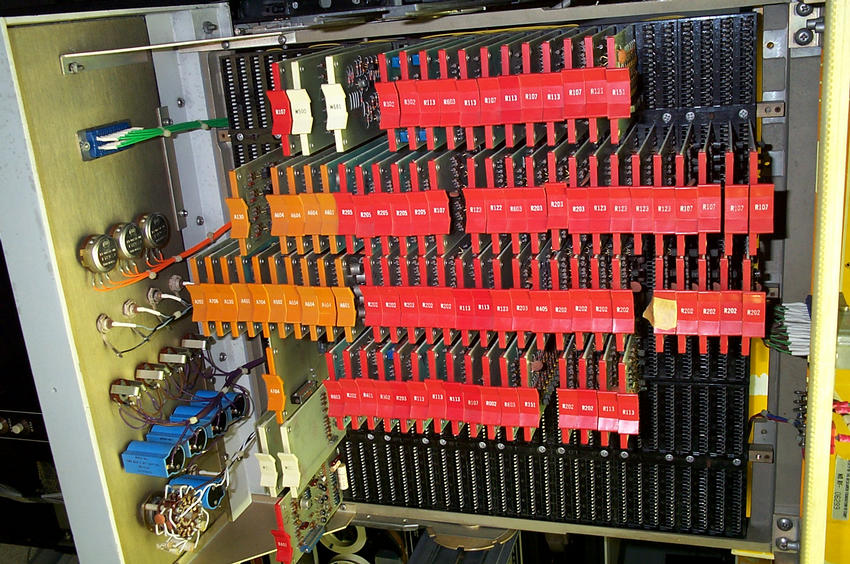

This is a top view of the AX08. The Red R series cards are digital logic, the Auburn A series cards are analog functions, and the White W series cards are interface cards.
