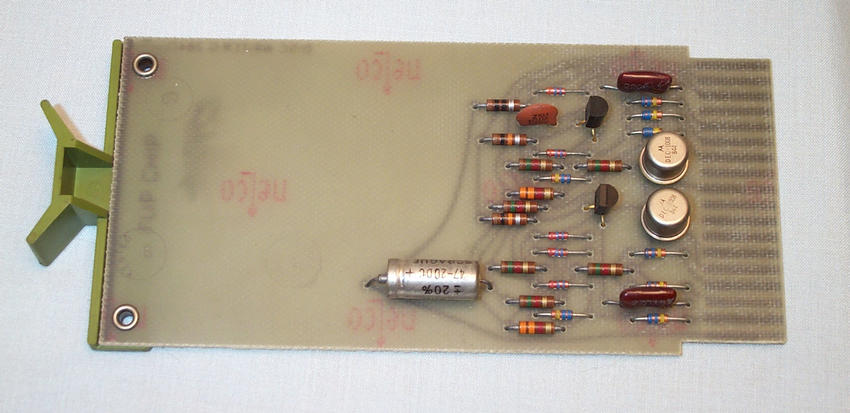

This board is used to drive the head when writing to the DF32 disk drive. It is capable of driving 150 mA with a rise time of 50 ns.
Schematic of board as a scanned PDF file.
