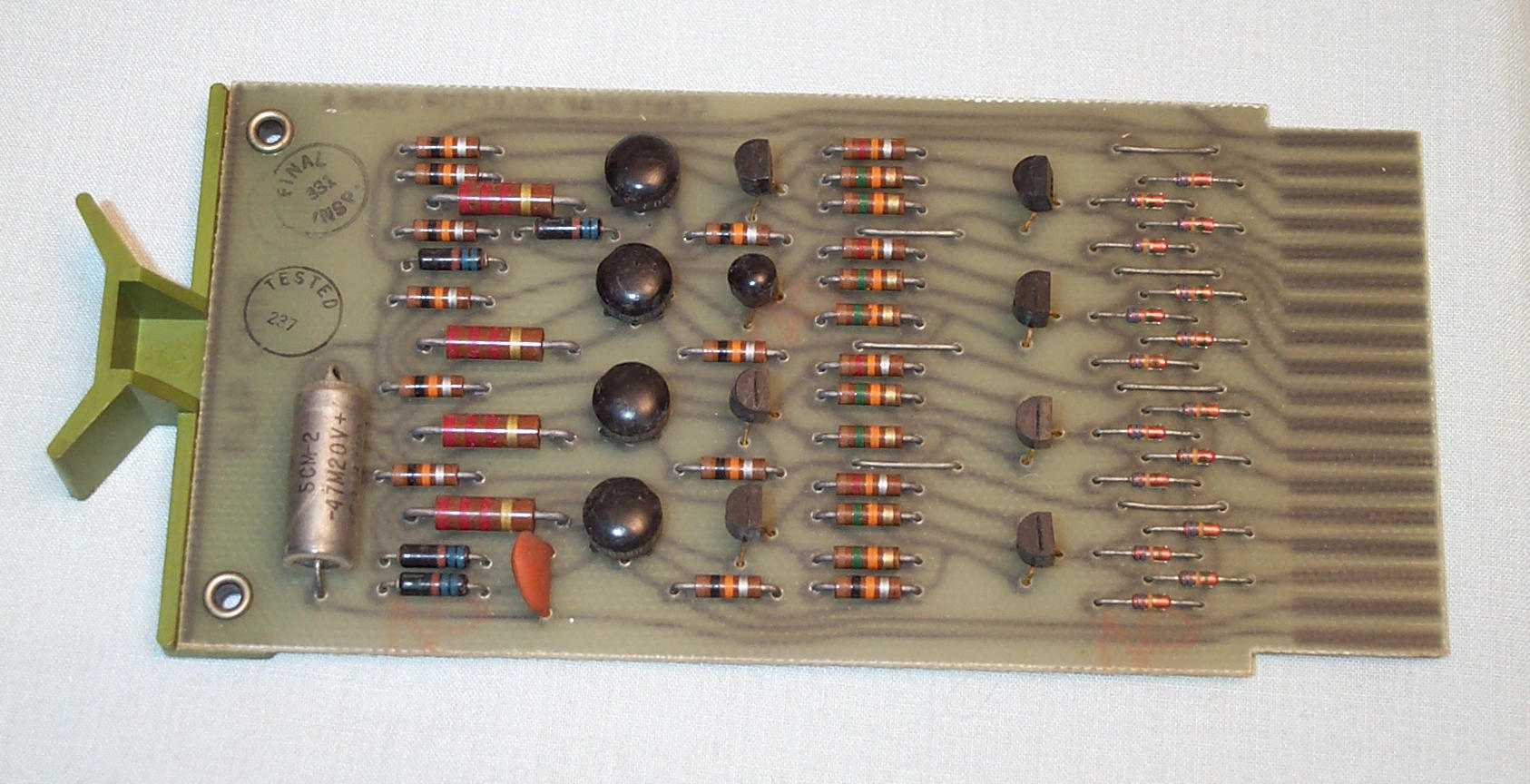

This board is used with the G285 (194K) series switch to select the active head in the DF32 disk drive.
Schematic of board as a scanned PDF file.
