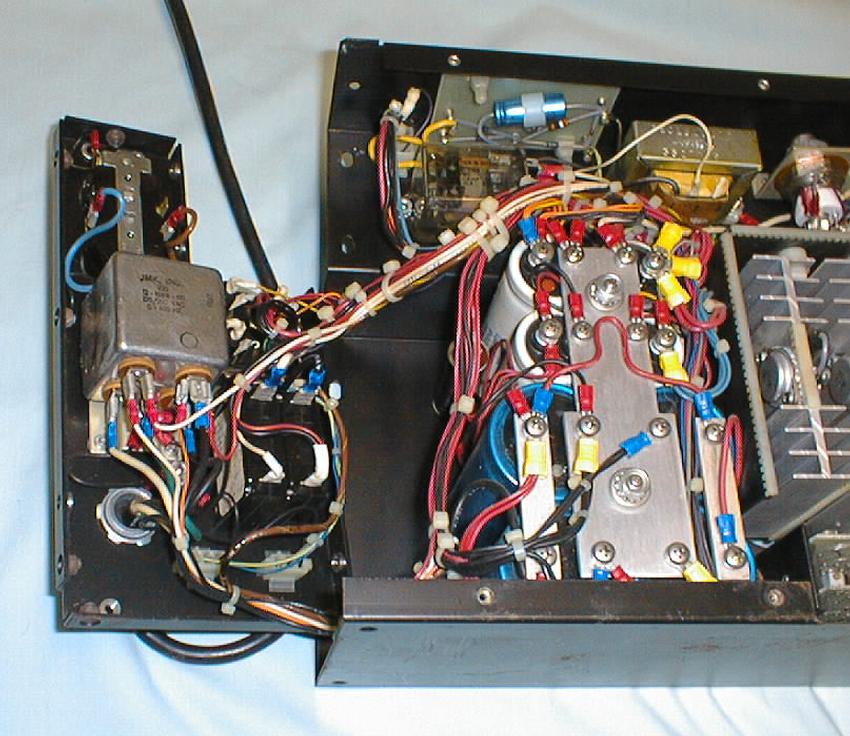

This shows the input power filter and breaker on the left, power supply filter capacitors in the middle, and the main power relay and transformer for powering it at the top.
View from other side. (103K) Overall view with description ( 63K)
