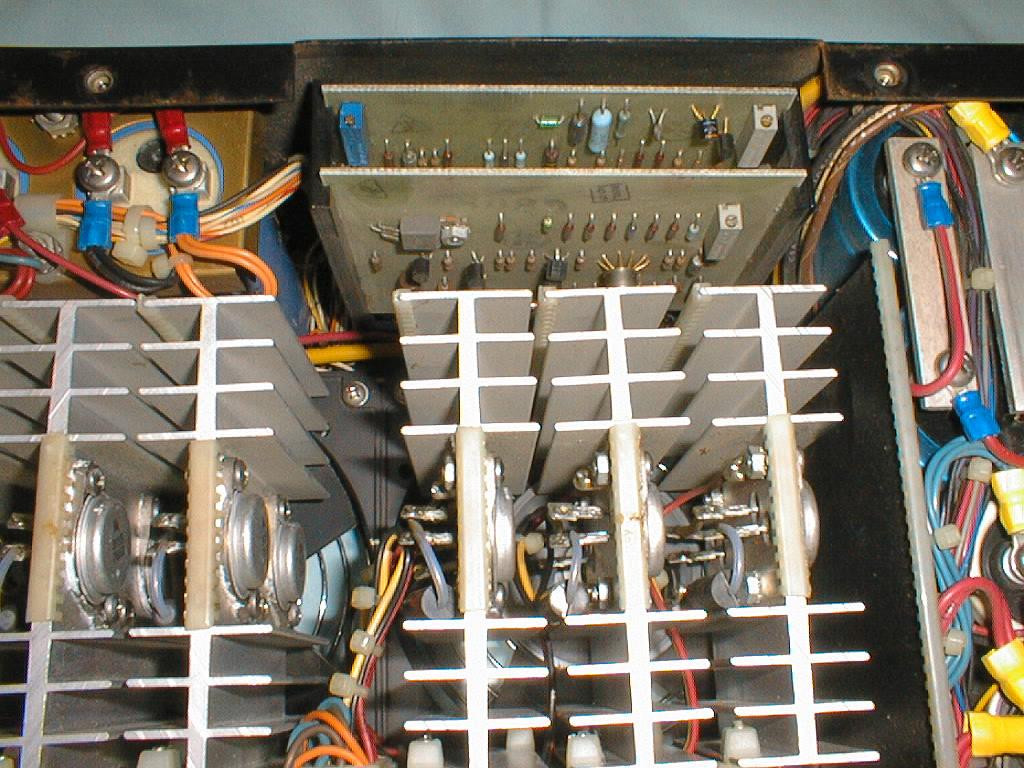

This is a close up of the regulator boards in the h724 power supply. The potentiometers adjust the output voltage.
