PT08 Teletype Control Information

The PT08 is used to add a serial port to negative bus PDP-8's. This was needed on PDP-8/S since it didn't have an internal serial port. The original PDP-8 and the PDP-8/I had one built in serial port so a PT08 was only needed if more that one serial port was needed. I am using it on my 8/I to allow me to run the EduSystem 20 multi user basic with two users. The PT08 normally would be used to talk to an 8 bit teletype such as a ASR-33 but could be configured to talk to a 5 bit baudot teletype. With an external current loop to RS-232 converter or a custom W070 like this one has it can be used to talk to a normal CRT terminal.

The PT08 uses the R401 RC clock to set the baud rate which requires you to jumper the correct capacitor on the backplane and then adjust the variable resistor to set the baud rate. The W706/W707 which have the serial port logic are made using Motorola Resistor Transistor Logic ( RTL) chips. Transistor Transistor Logic ( TTL ) chips where introduced a couple years after RTL chips and had better performance so they soon became the dominant chip type. These cards are the only PDP-8 boards I know of which use RTL IC's.

Boards Used
QuantityBoard TypeDescription
R401 Rev D Variable Clock Sets baud rate for transmit and receive
W005 Clamped Load
W070 Teletype Connector
W103 PDP-8 Device Selector Determines IOT address PT08 responds to
W705 +3.6 Volt Power Supply
W706 Teletype Receiver
W707 Teletype Transmitter

Documents related to PT08

The following picture links also have descriptions of what is shown in the pictures.

Thumbnail Picture Selector

Current size small. Select picture size for links below   Small  Medium  Large

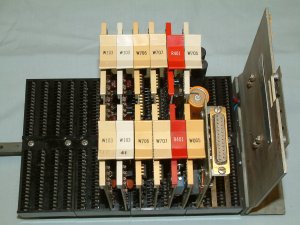

board side ( 23K)  board side closeup ( 46K)  backplane closeup ( 64K)
Nameplate ( 17K)
W070 RS-232 ( 31K)  back of board ( 30K)
