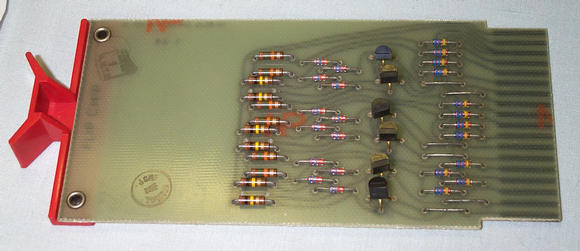

This board contains 6 NAND/NOR gates similar to the R111 ( 24K) board intended for driving the PDP-8 input bus from peripherals.
This board cost $19 in 1968.
Schematic of board as a scanned PDF file.
