R series PDP-8 board information and R401 Rev H Variable Clock

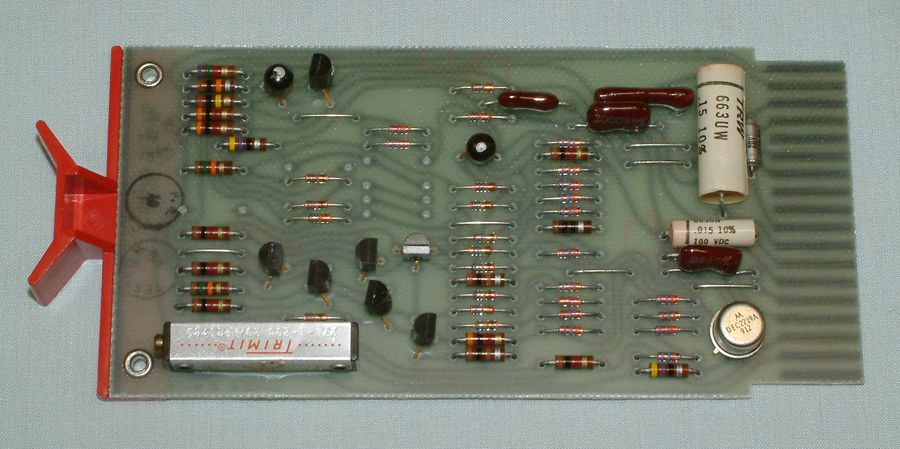

This board is a Resistor Capacitor (RC) oscillator with output pulse amplifier. The board is revision H. Frequency is set by selecting on the backplane one of the 5 on board capacitors to select the frequency range and then using the on board pot to set the desired frequency. The board can generate 30 Hz to 2 MHz. The frequency is stable to 1% with 20% change in power supply. This board cost $45 in 1968.
