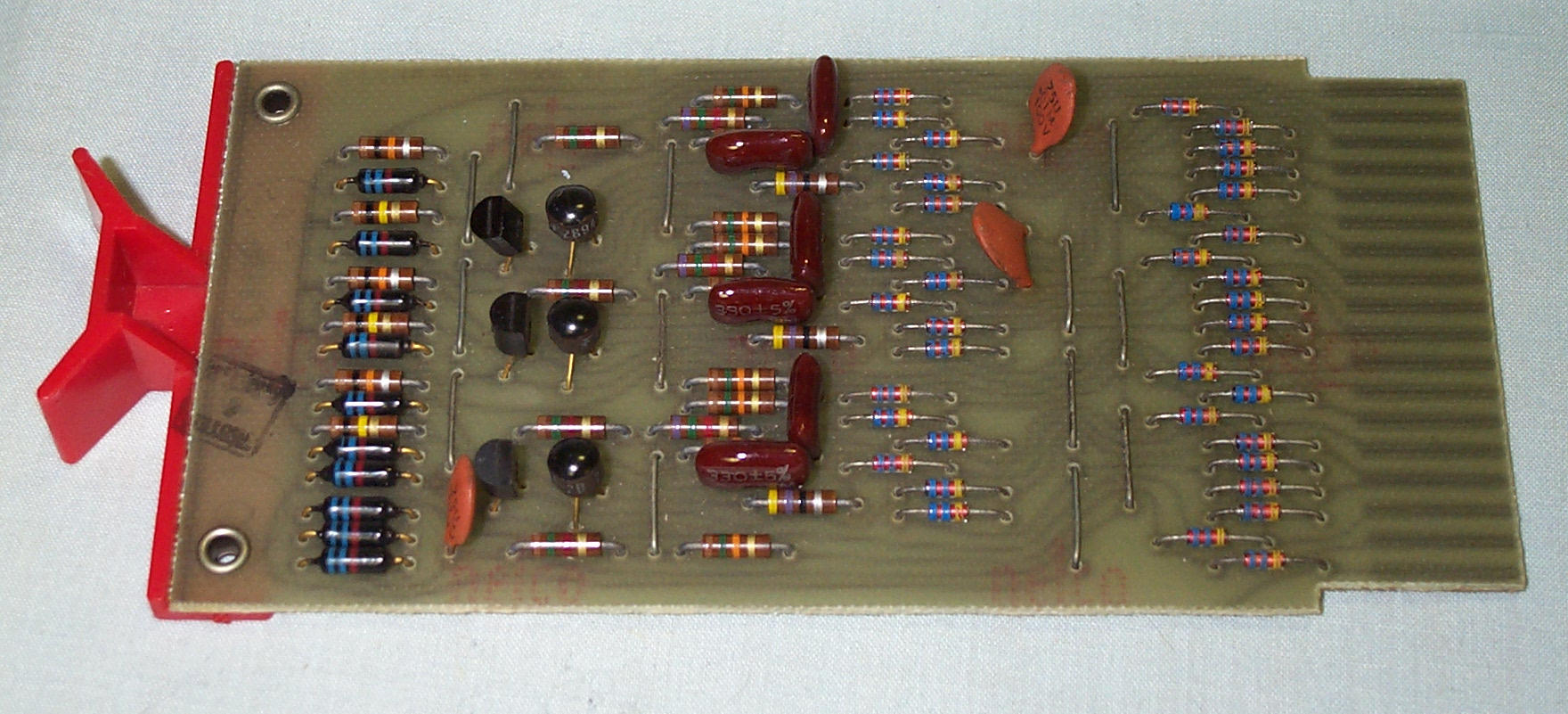

This board is a pulse amplifier which converts input pulses to the standard 0 to -3V 100 nanosecond pulse. The R series logic uses pulses for clocked functions such as registers. Modern logic normally uses edge triggered registers or level sensitive latches.
This board cost $28 in 1968.
Schematic of board as a scanned PDF file.
