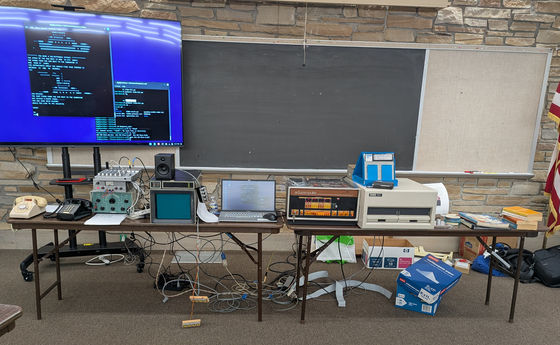

From left to right rotary and dial phone. Next Signal generator, power supply for phone, and mixer to get proper level to speaker and computer. Next Tektronix 611 monitor and speaker. Monitor on its side since landscape format better for demo. Hanging down and around it are controllers for spacewar and box with pots for zooming and shifting FFT display. Next is my laptop sitting in for the failed printing terminal. Next PDP-8/M computer with LAB-8E card set for analog to digital convert, driving Tektronix 611 monitor (XY), and digital I/O. Next RX02 floppy drives. Then some manuals.
