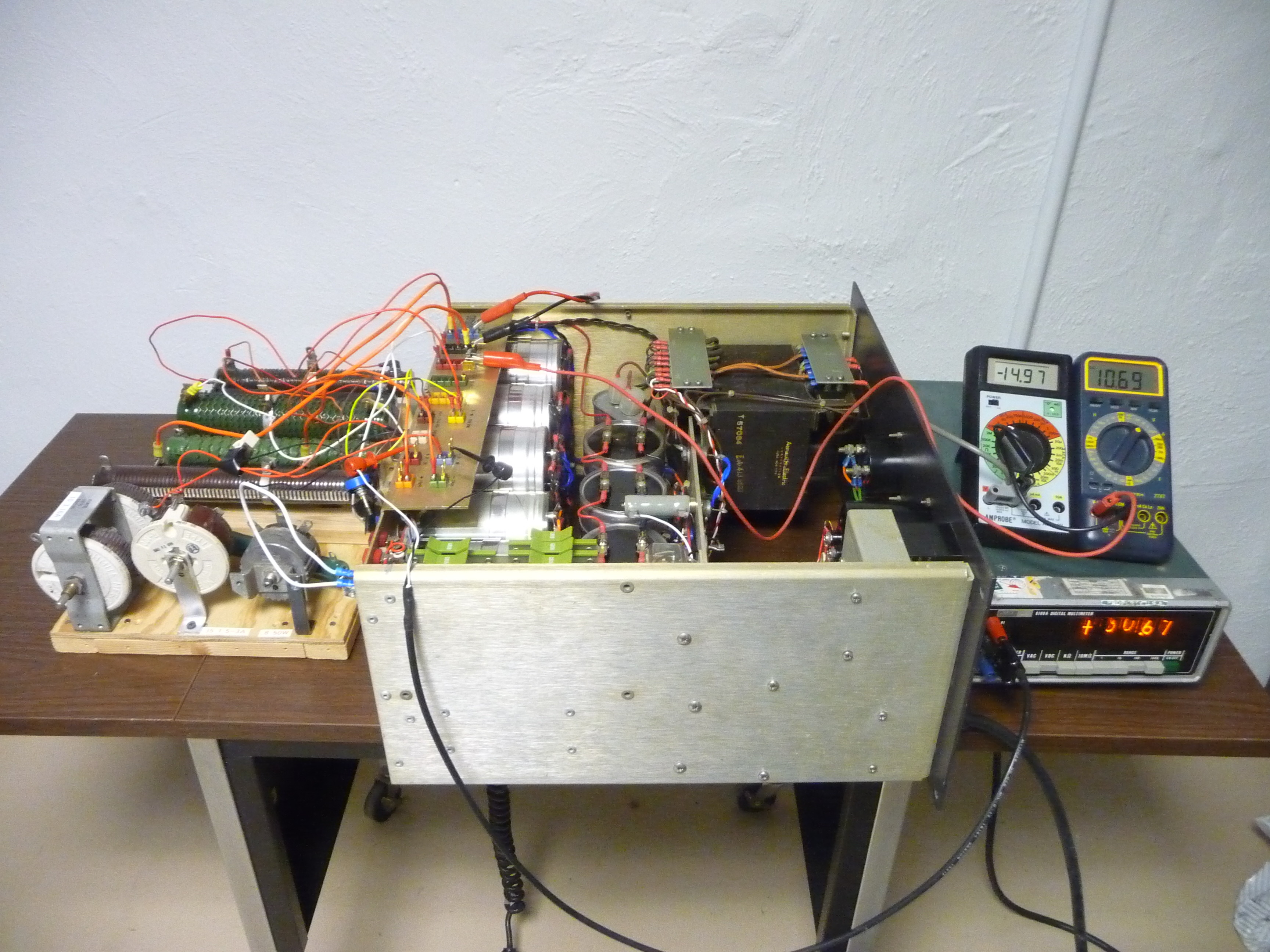

This is the 708 power supply under test. On the left is the load resistors and pots to simulate the memory thermistors. On the right meters measure the output voltages. I later put a fan on the resistors since the 15V load one was getting quite hot. To stay below temperature that will burn you if touched you need to operate them at a small fraction of the rated dissipation.
