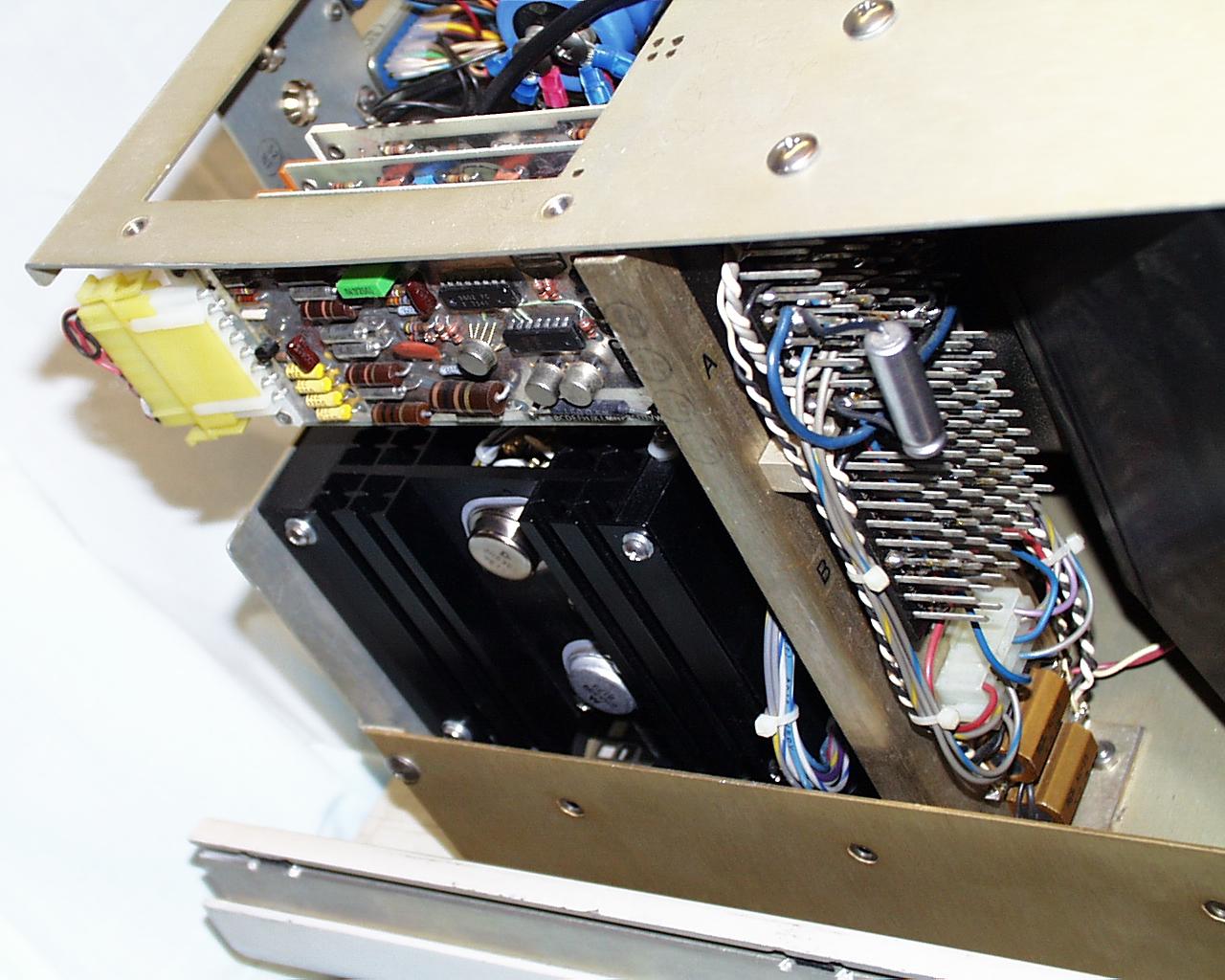

Backplane side of unit. Lower block of card cage is not used. Heat sink is for the deflection power transistors.
