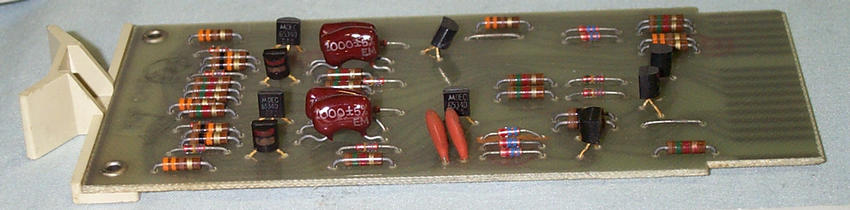

This board contains two dual rectifying slicer. It is used to detect amplified magnetic system sense signals from a W 532 and convert them to positive DEC pulses. Detection of signals as narrow as 100 nanosecond is possible.
This board cost $30 in 1968.
