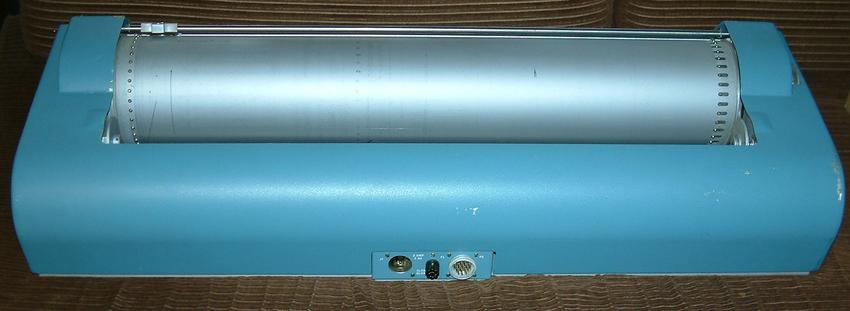

This is the back of the Calcomp 563 incremental plotter. The round multi pin connector is the connection to the control board in the PDP-8.
