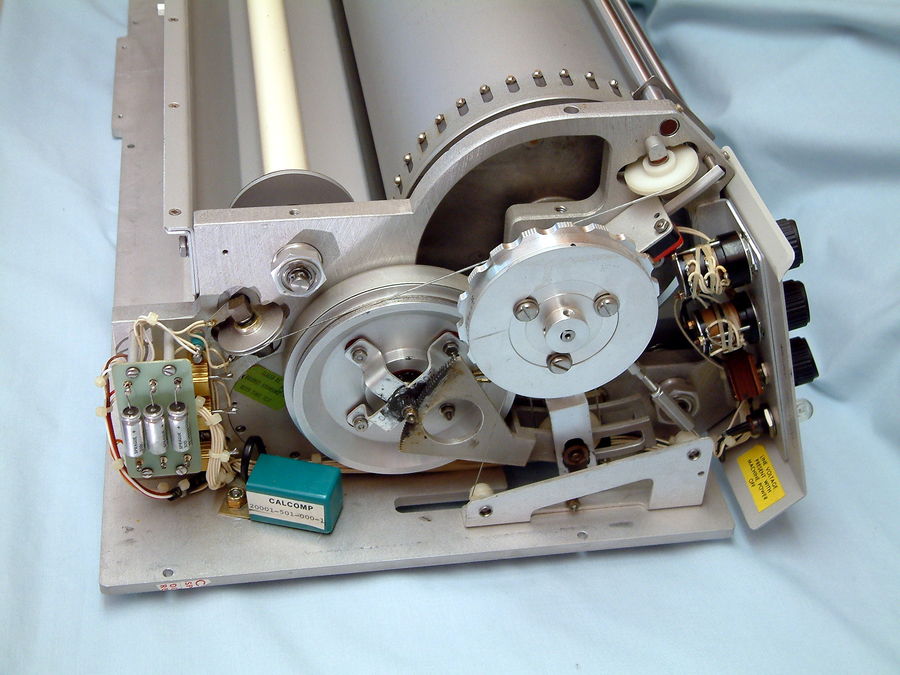

This is the left side view of the Calcomp 563 incremental plotter with the cover removed. The two big wheels are part of the mechanism that allows the pen left-right steps per inch to be adjusted to align the paper with the plotter motion.
