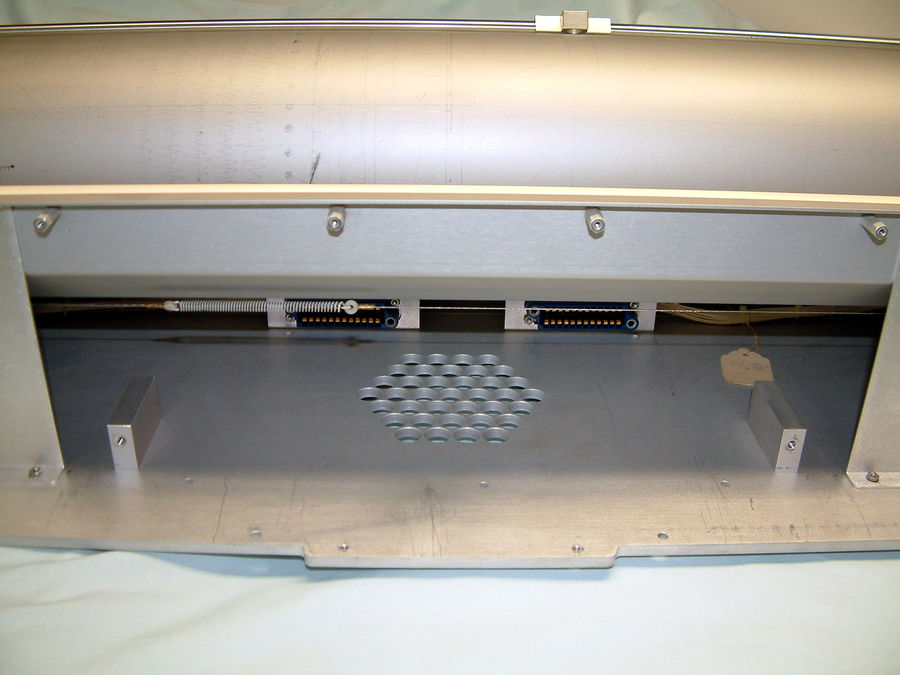

This is where the power supply plugs into the plotter. At the top is the spring which tensions the cable which moves the pen left and right.
