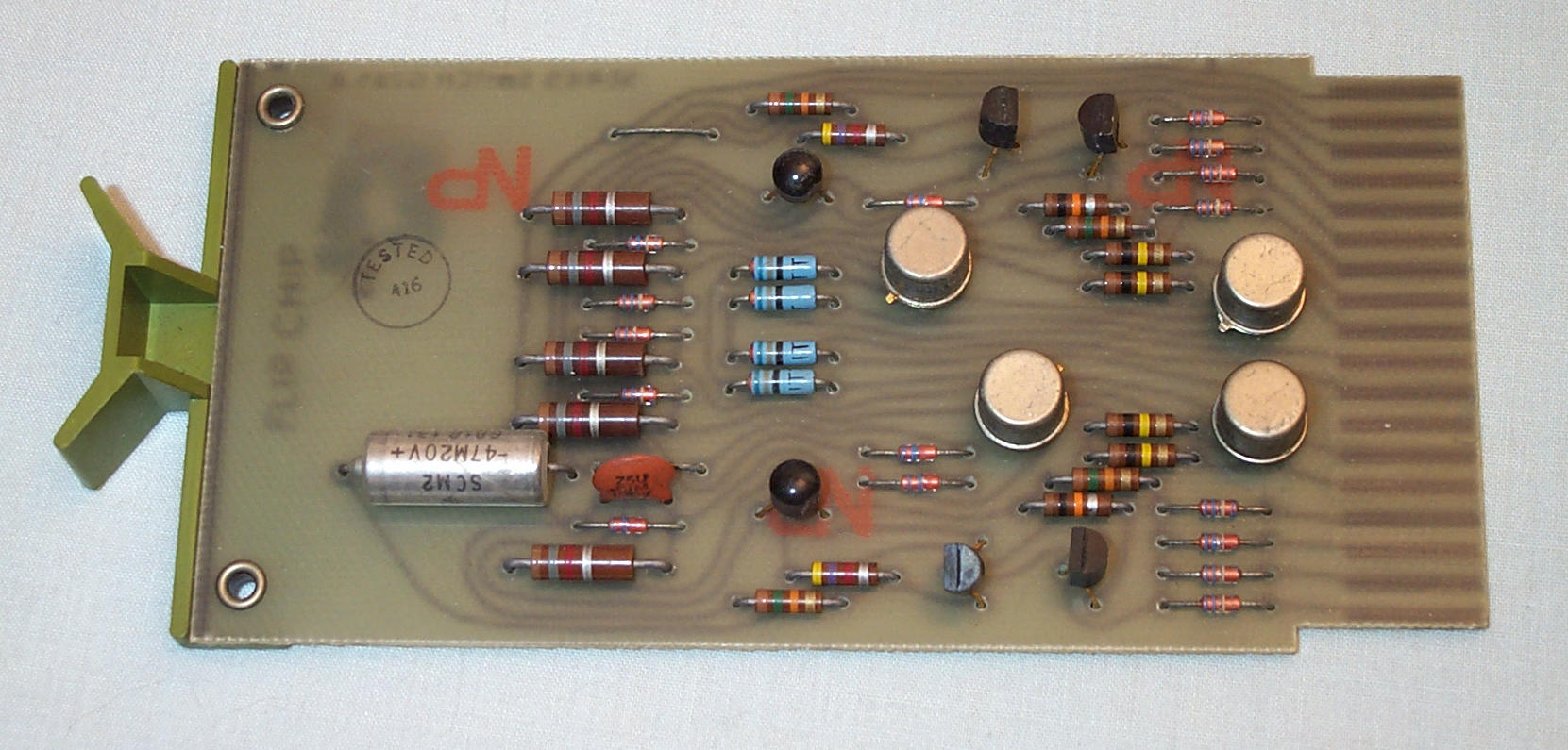

This board is used with the G286 (222K) center tap selector to select the active head in the DF32 disk drive.
Schematic of board as a scanned PDF file.
