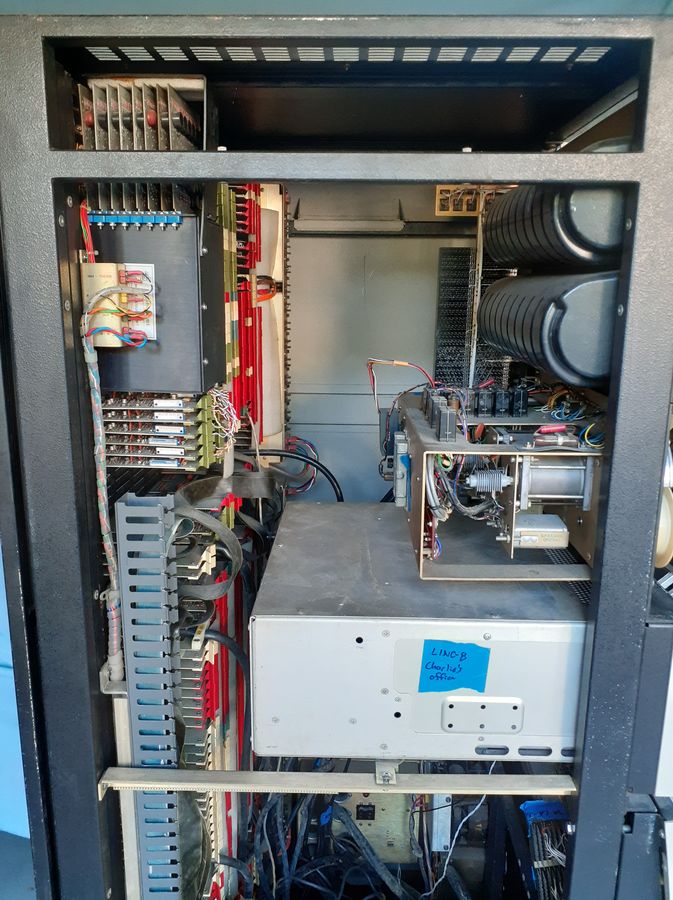

This is a side view with the side panel removed. Drive uses relays for control of the motors. I think this drive uses belts from the motors to the tape reels that likely need replacing.
