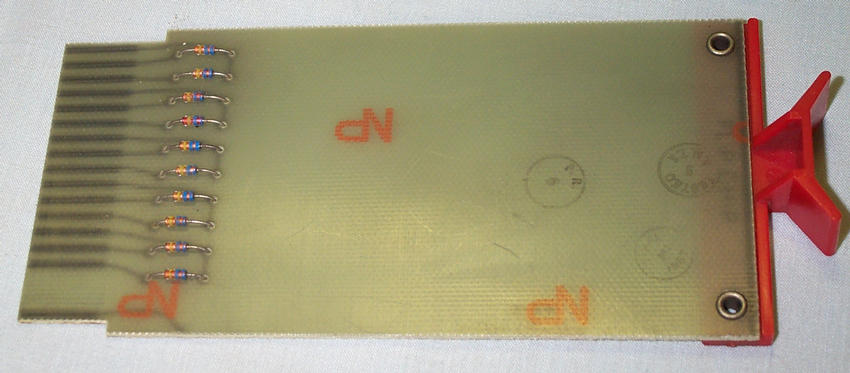

This board is a set of diodes used to expand the number of inputs on some of the logic boards such as the R111 ( 49K) diode gate or for use as diodes. Diodes are similar to 1N3606. This board cost $5 in 1968.
Schematic of board as a scanned PDF file.
