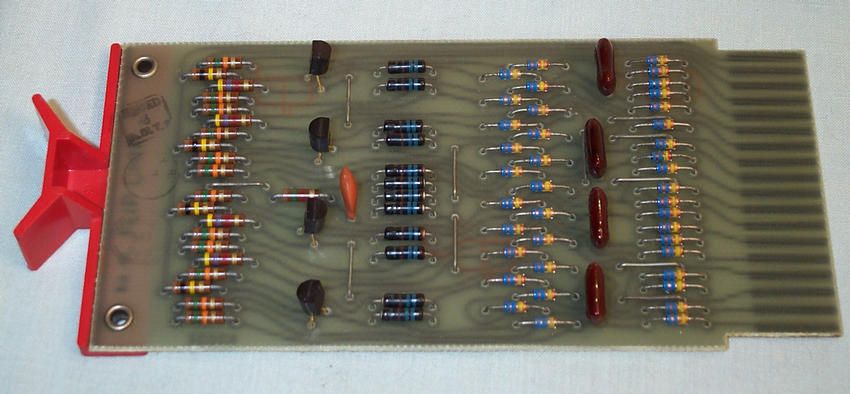

This board is a dual flip flop where each flip flop stores 1 bit of information. This is somewhat similar to the TTL 7473 dual J-K flip flop. It has a set and reset input and a gated set and reset. Without additional gating you can perform the following operations.
- Up counter with load
- Shift register with parallel load
- Ring counter
- Down counter
- BCD counter
This board cost $22 in 1968.
Schematic of board as a scanned PDF file.
