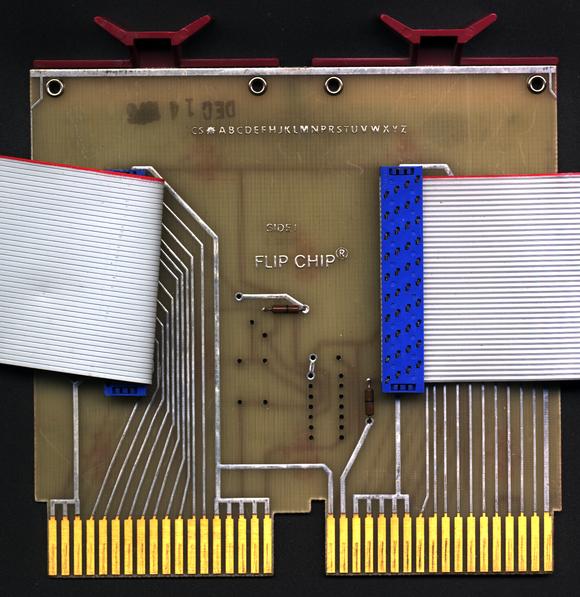

Front of M993C Interface Card. This card connected the RK05 drive to the Omnibus controller RK8E using 2 ribbon cables. See M993B ( 55K) for the earlier version and description of differences. Back of board ( 52K)
