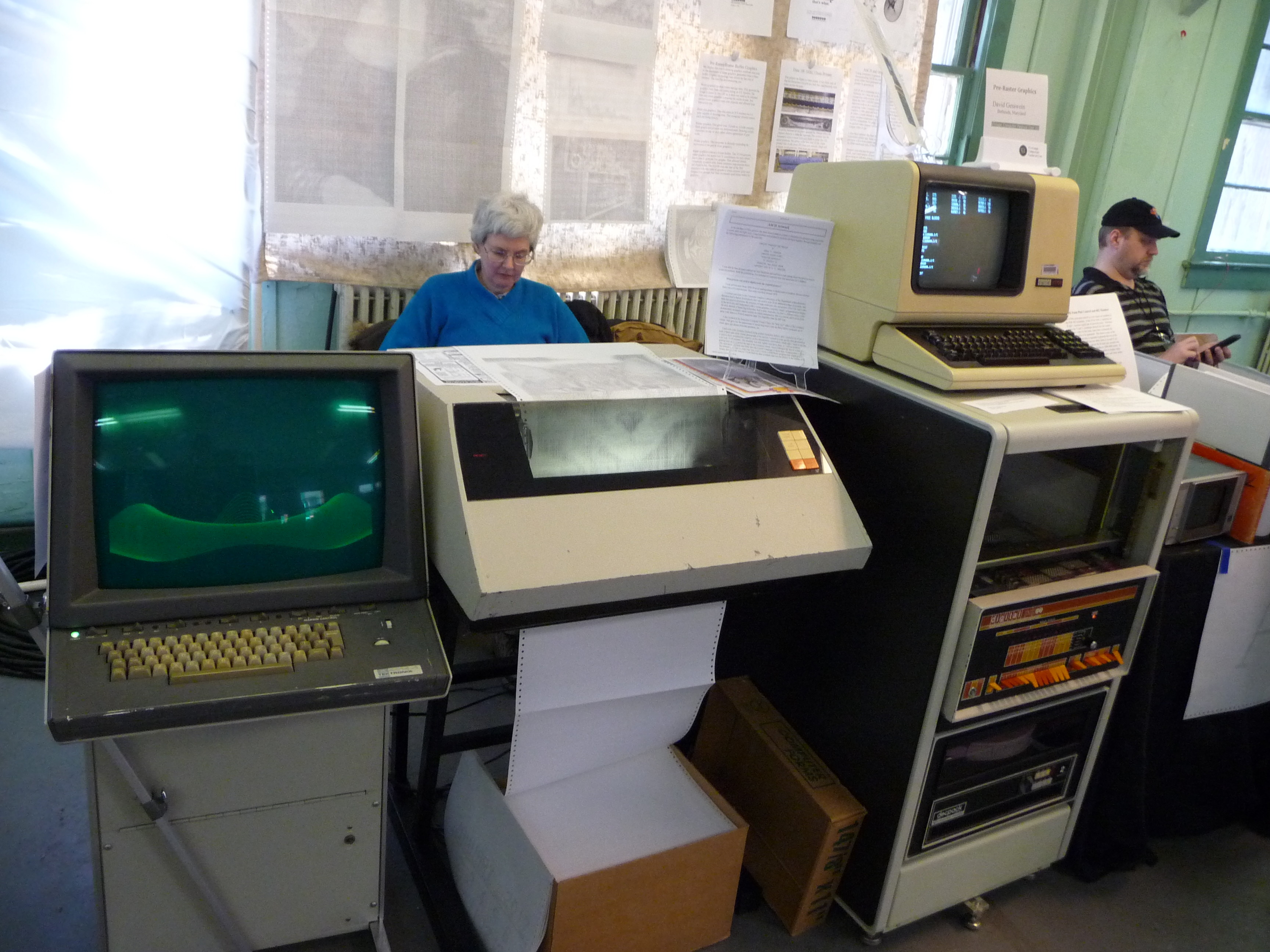

On the left is a Tektronix 4014 direct view storage tube graphic terminal. Next is a ODEC data 100 printer. To the right is a rack with a PDP-8/E computer with RK05 disk drives on the bottom. On the top is a VT105 waveform graphics terminal. See following pictures for other items.
I used some demos I found online a while ago that are now gone to show off the 4014 capabilities. I was printing ASCII art pictures of attendees and from the Princeton picture tape using the PDP-8. I also had a Pascal program for the PDP-8 that printed calendars. I use the VT105 driver for gnuplot and the VT55 diagnostic to demo the VT105 capability by sending a file from the PDP-8.
