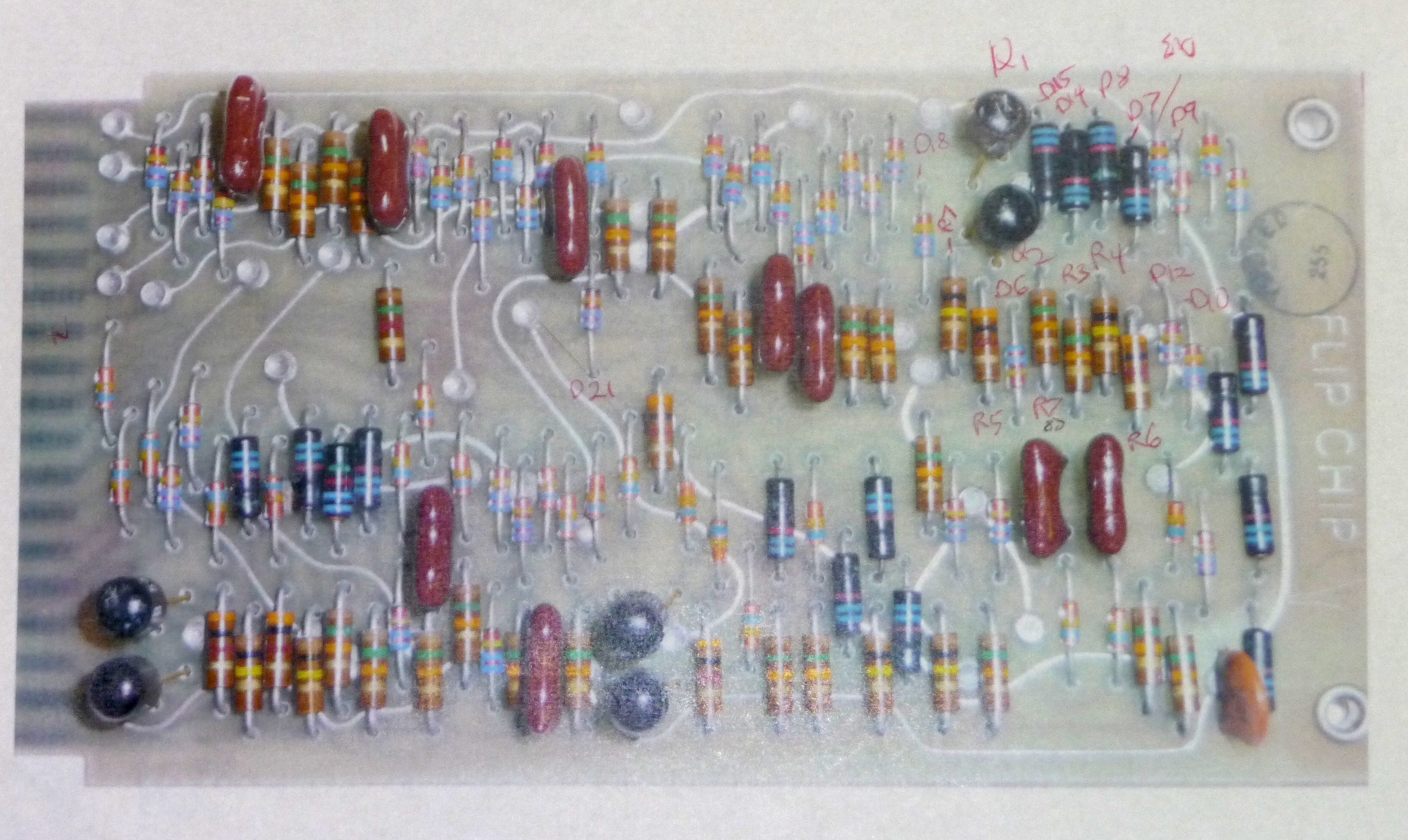

This is the picture of the R220 card I marked up with component designations for the area I was working on. Later I switched to taking the picture with the board held up to a light so I could see the traces also.
