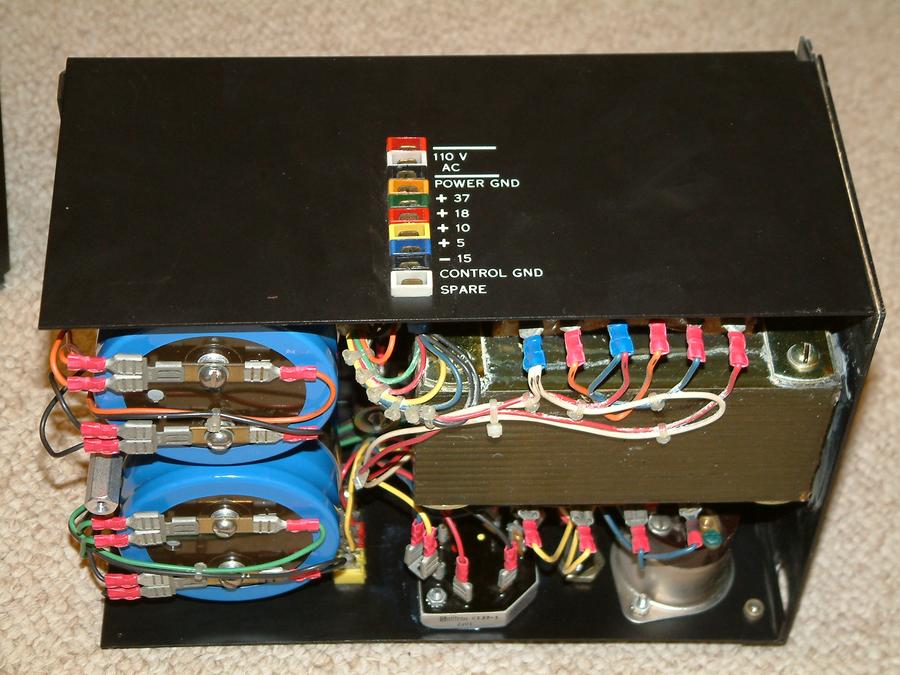

This is a picture of the front of the power supply. They did color code the terminals to make it less likely to plug the wires in wrong. Bad things will happen if you get one wrong
