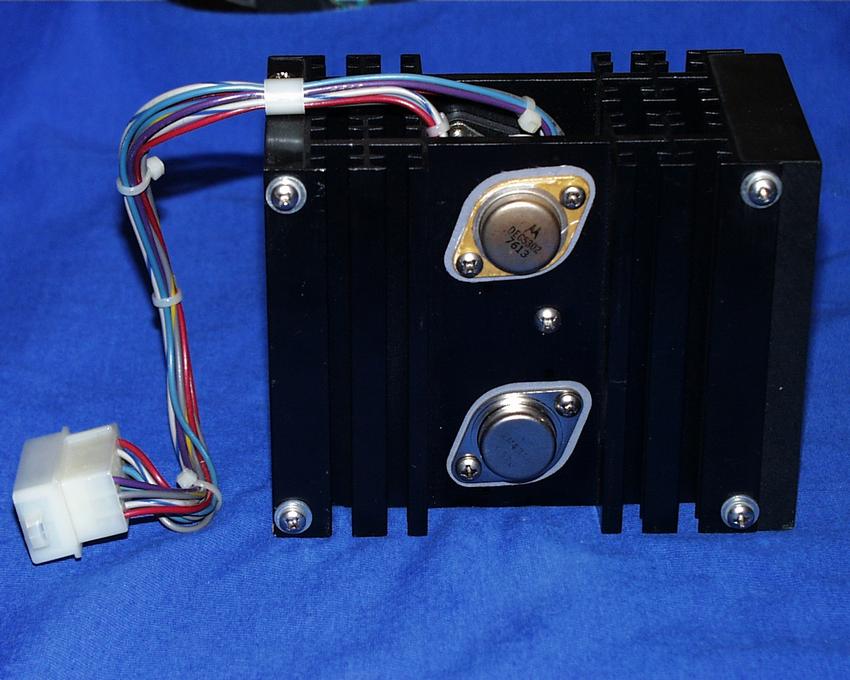

CRT Deflection amplifier power transistors heat sink. These transistors blow very easily, several had been replaced and more were blown when I got the unit. The transistor at top is probably the only original one left.
The transistors are controlled by the A225 deflection amplifier card ( 82K) . A fan blows directly on this heat sink to keep it cool.
