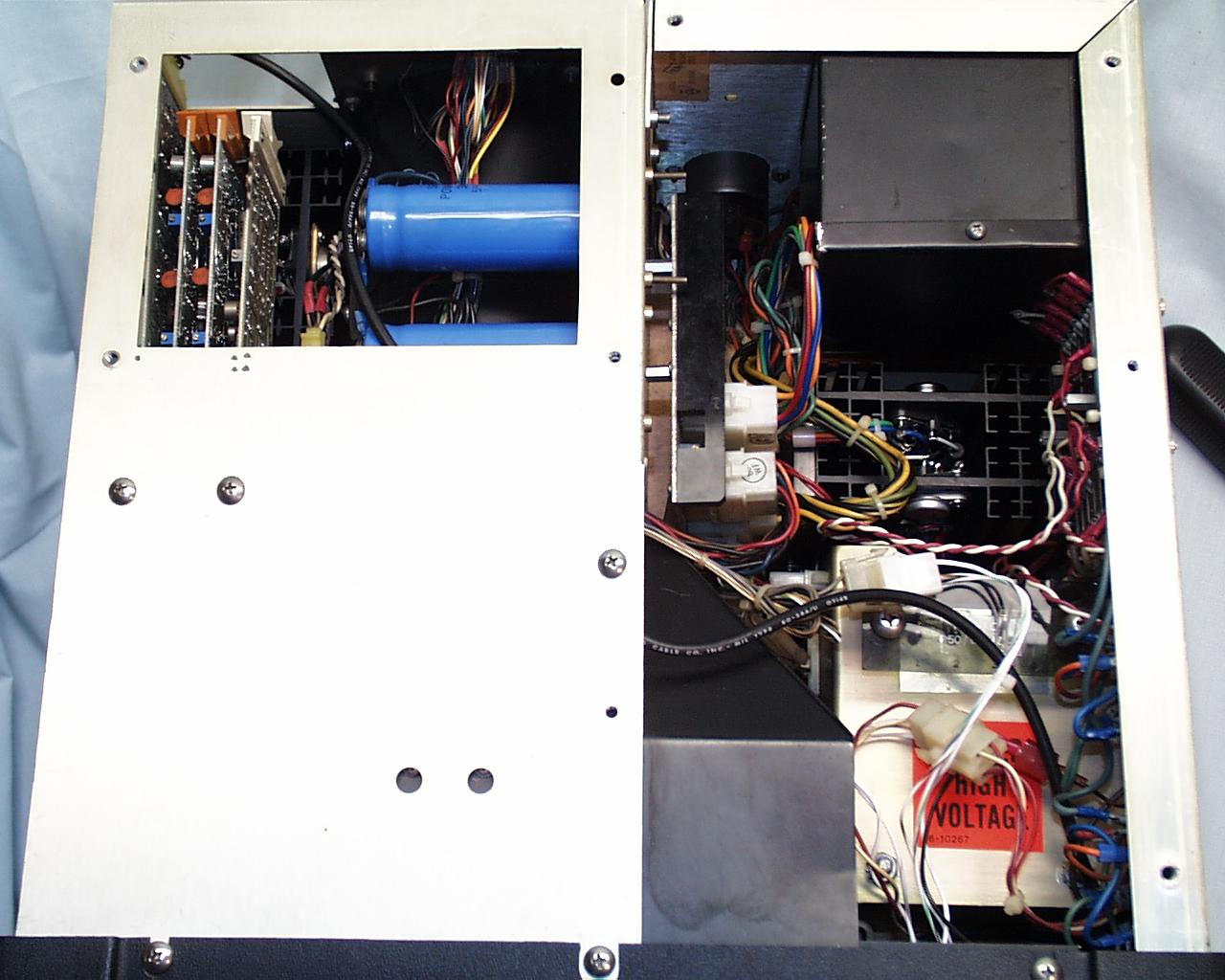

Looking straight down, covers removed. The big black block in the back right is the power transformer. The heat sink below it has the power transistors for the deflection power supply. Below it is the high voltage transformer for the CRT. The CRT is under the back shield. The board above the CRT is the G8360 (164K) regulator board.
In the other hole is the A225 (148K) deflection cards, the W684 (123K) Intensity card, and the G840C (133K) light pen card plugged into a small backplane (172K) . Below the cards is the heat sink for the deflection power transistors. The blue cylinders are filter capacitors for the ± 22V deflection power.
