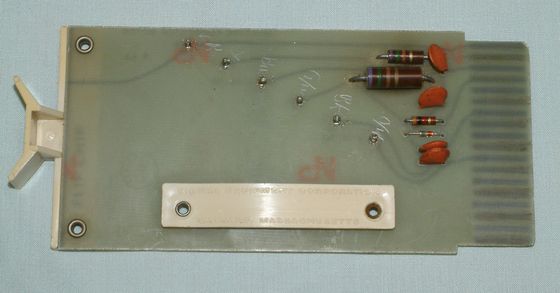

This board is the connector for the teletype terminal for PT08 and the original PDP-8. The cable to the teletype should be under the white clamp at the bottom and connected to the solder pins on the board.
