PDP-8/E Board Back of M885

Current size small. Select new size for picture Small ( 95K) Medium (174K) Large (2.1M)

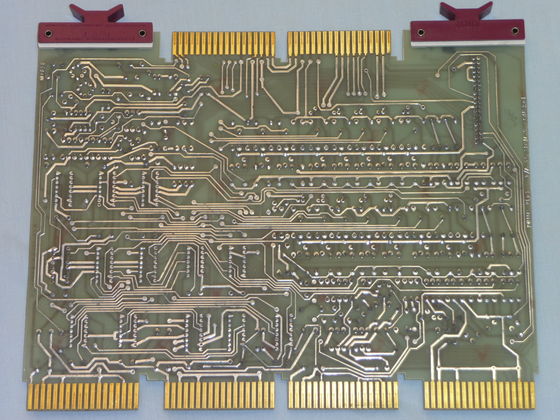

This is the back of the M885 point plot display D/A board. It is used with the M869 ( 85K) point plot display control board to drive X/Y monitors like the VR14 monitor Front of board (100K)
