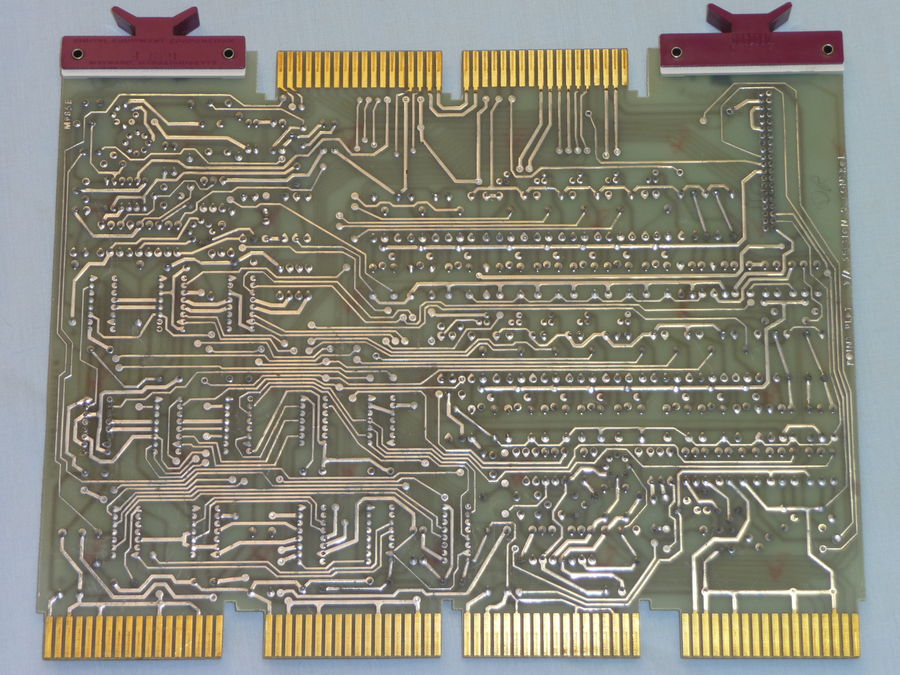

This is the back of the M885 point plot display D/A board. It is used with the M869 (151K) point plot display control board to drive X/Y monitors like the VR14 monitor Front of board (185K)
