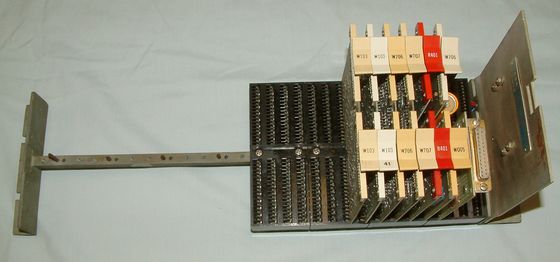

The empty backplane slots on the left are used to connect the six cables needed to interface with the computer. The slots on the right are not used. The card with the DB25 connector is a home made version of a W070 that outputs standards RS-232 levels instead of 20ma current loop for a teletype.
