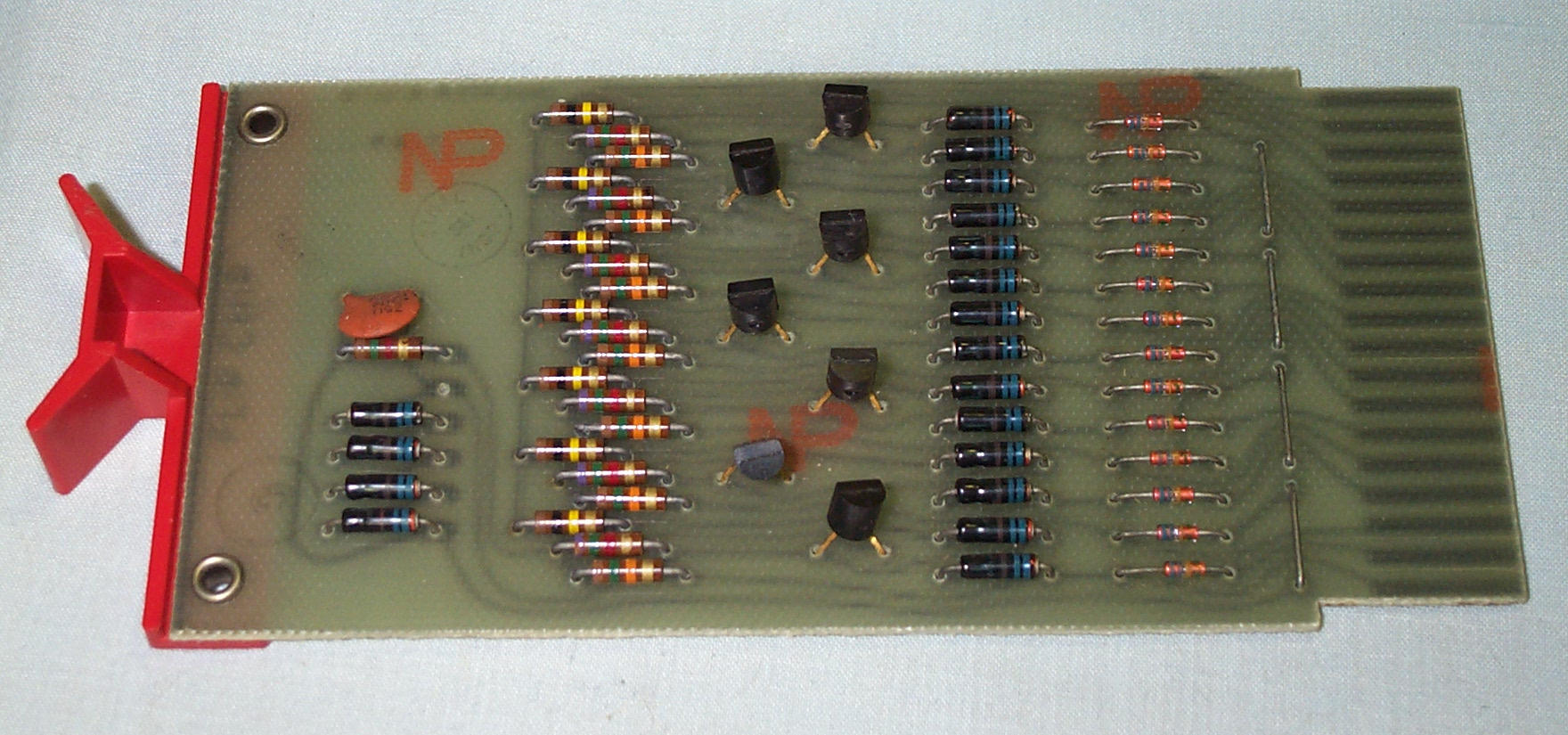

This board contains seven inverters which change a true signal into false. One inverter may be expanded to perform logic with the R001 or R002 (166K) board. It performs the same function as the later TTL 7404 hex inverter.
This board cost $24 in 1968.
Schematic of board as a scanned PDF file.
