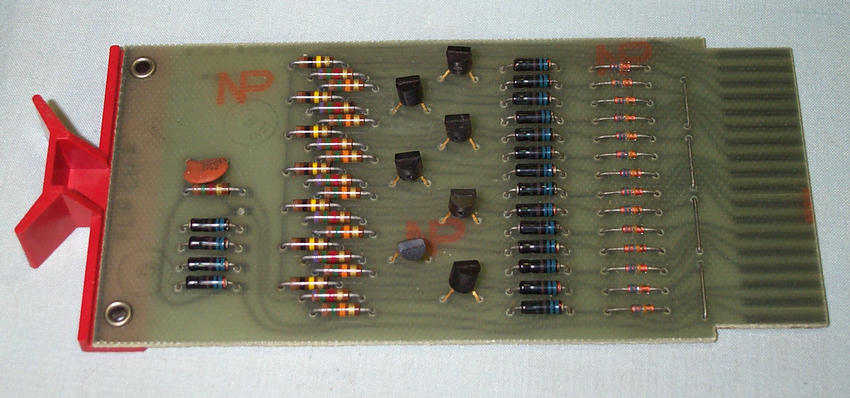

This board contains seven inverters which change a true signal into false. One inverter may be expanded to perform logic with the R001 or R002 ( 42K) board. It performs the same function as the later TTL 7404 hex inverter.
This board cost $24 in 1968.
Schematic of board as a scanned PDF file.
