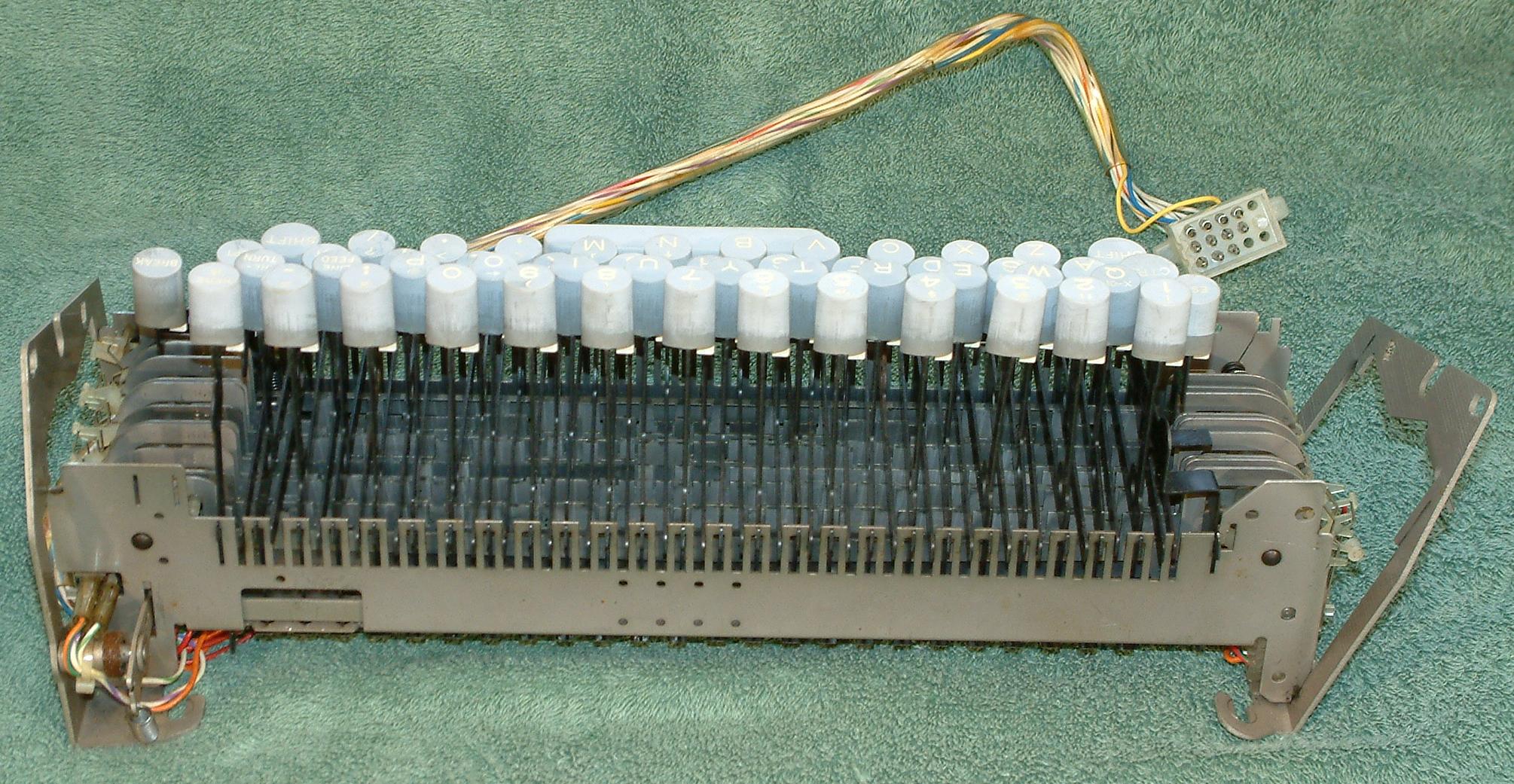

This is the rear of the ASR 33 Teletype keyboard. The lever coming out the left side is used to trigger the main teletype mechanism to send the serial data for the key pressed.
