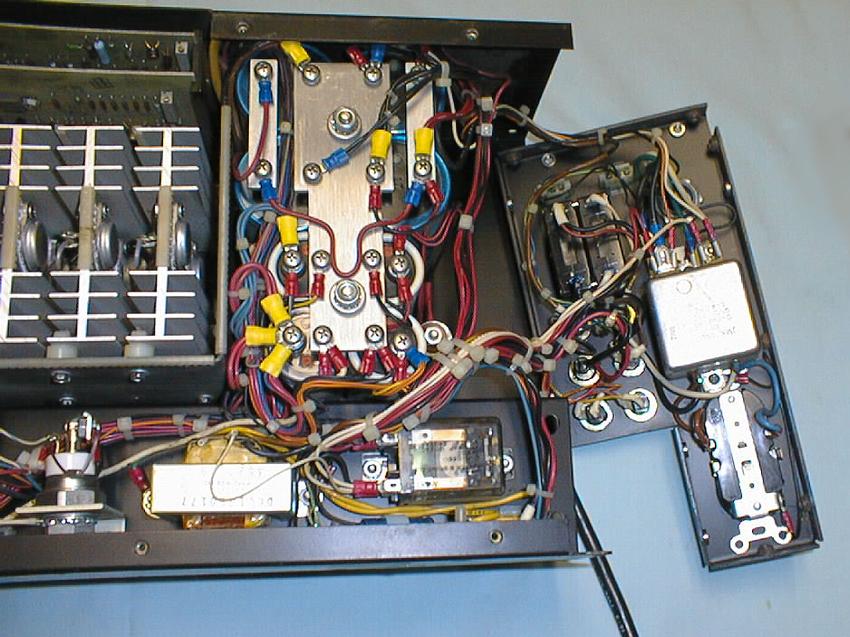

This is the opposite side of the input section. You can see in this view the power supply output fuses in the middle right. The +5VDC one had gone bad which is why I needed to take the supply apart.
View from other side with description. (111K) Overall view with description ( 63K)
