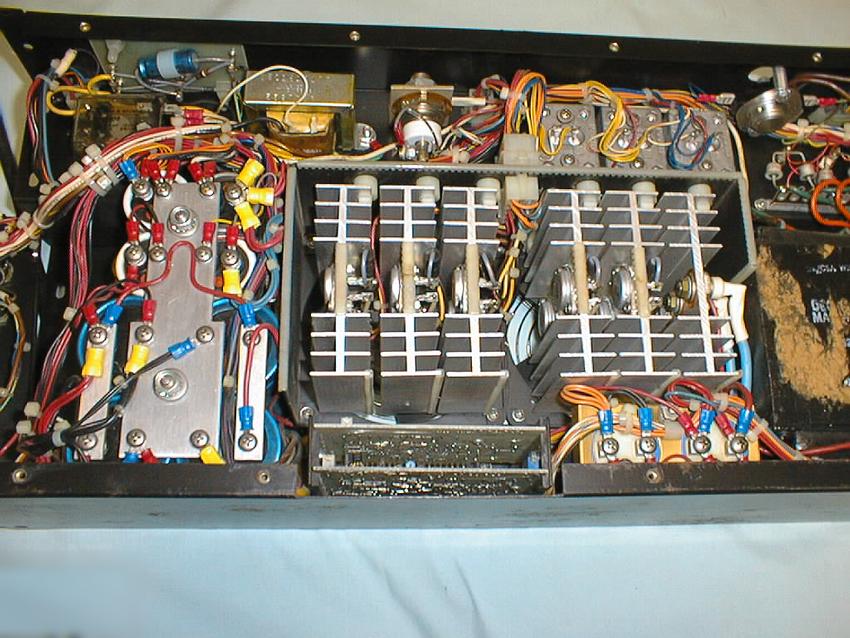

This is a close up of the middle section of the h724 power supply. At the top center is the silicon controlled rectifier (SCR) used to short out the output of the +5VDC supply if the output voltage goes too high. This was done to prevent the boards being damaged if the voltage regulator fails.
View from other side. (104K) Overall view with description ( 63K)
